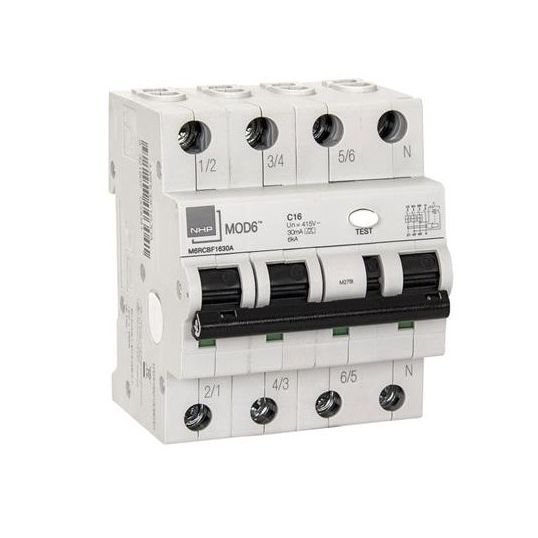

NHP Combination RCD Circuit Breaker RCBO 3P+N 32 Amp 415V AC 6 kA 72mm DIN 35 Rail

$NHP\NHP_M6RCBFXXXXA.jpg$

Description

Residual Current Device, 415 Volt, 32 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 3 + N Pole, 72 Module, Pin Connection, IP2X/4X, DIN Rail Mounting, 25 to 55 deg C, 75 mm Height, 72 mm Width, 80 mm Depth

Key Specifications

SKU	NHPM6RCBF3230A
Brand	NHP
Range Name	MOD6

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Type A RCD with switched neutral 30 mA sensitivity for general personnel protection applications C trip curve for general light and power applications Fast connection pin bus bar comb Blue earth leakage indicator flag Dual incoming and outgoing terminals Suits pole-covers and loadcentres
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	M6RCBF3230A
Connection Type	Pin
Current	32 Amp
Frequency	50/60 Hz
Depth	80 mm
Height	75 mm
Interrupt Capacity	6 kA
IP Rating	IP2X/4X
Modules	72 Module
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Voltage	415 Volt
Trip Characteristic	C Curve
Temperature	25 to 55 deg C
Trip Sensitivity	30 mA
Width	72 mm
