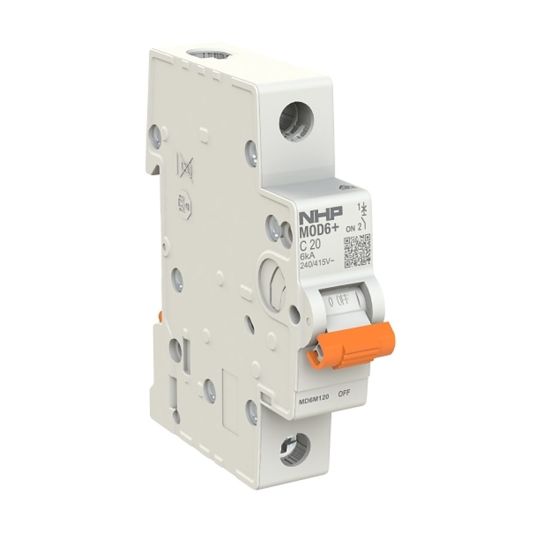

NHP MOD6+ Miniature Circuit Breaker C Curve 240V 20A 6kA 1Pole 1Module 17.5mm Chassis Mount

$NHP\NHP_MD6M120.jpg$

Description

The MOD6+ circuit protection range offers reliable performance and cost effective solutions for both domestic and commercial applications. With seamless integration to our panelboards and loadcentres, the range is certified to AS/NZS standards and provides a minimum genuine 6 kA short circuit rating. Certifications are available online on the National Equipment Registration System (EESS) to ensure transparency in safety and compliance.

Key Specifications

Barcode (EAN-13)	4053546126372
SKU	NHPMD6M120
Brand	NHP
Range Name	MOD6+

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pad lockable handle option Handle sealable in ON and OFF position Suits pole covers, MOD6+ loadcentres/Panelboards Suits M6NC busbar chassis
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MD6M120
Actuator Type	Handle
Cable Size	0.75-25 sq-mm (Solid-core) / 0.75-16 sq-mm (Multi-wired)
Current	20 Amp
Depth	75.8 mm
Frequency	50/60 Hz
Interrupt Capacity	6 kA
Height	85 mm
Modules	1 Module 17.5 mm
Mounting Method	Chassis
IP Rating	IP40
Number Of Poles	1 Pole
Temperature	-25 to 70 deg C
Voltage	240 Volt AC
Width	17.5 mm
