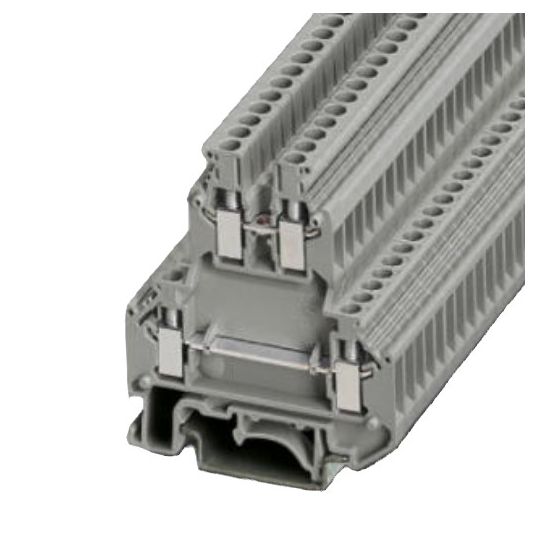

Phoenix Contact Rail Terminal Block Double Deck Screwed 2 Wire 2 Level 0.2-4mm Grey Polyamide

Description

Double Level Terminal Block, 0.2-4 mm, 2 Conductors, 500 Volt, 6 kV Rated Surge Voltage, 24 Amp, 8 mm Wire Strip Length, 0.5-0.6 Nm Tightening Torque, 2 Conductor Wiring Format, 4 Connection Points, 2 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Grey, -60 to 110 deg C, UL94 V0 Flammability, 56 mm Height, 5.2 mm Width, 62 mm NS 35/7,5; 69.5 mm NS 35/15; 67 mm NS 32 Depth

Key Specifications

SKU	PHO2770011
Brand	Phoenix Contact

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Large surface labelling option
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	2770011
Colour	Grey
Conductor Size	0.2-4mm
Current Rating	24 Amp
Depth	62 mm NS 35/7,5 - 69.5 mm NS 35/15 - 67 mm NS 32
Flammability	UL94 V0
Insulation Material	Polyamide
Height	56 mm
Mounting Method	NS 35/15 - NS 35/75
Number of Conductors	2
Number of Connection Points	4
Number of Levels	2
Rated Surge Voltage	6 kV
Terminal Type	Screw
Temperature	-60 to 110 deg C
Tightening Torque	0.5-0.6 Nm
Voltage Rating	500 Volt
Width	5.2 mm
Wire Strip Length	8 mm
Wiring Format	2 Conductor
