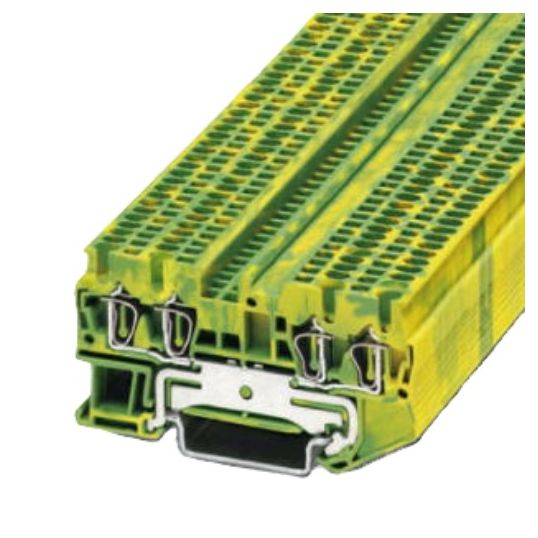

Phoenix Contact Rail Earth Terminal Block Spring Cage 2 Wire 1 Level 0.08-1.5mm Green/Yellow Polyamide

Description

Rail Earth Terminal Block, Spring Cage, Rated Surge Voltage: 6 kV, 0.08-1.5mm Conductor, 2 Conductors, Wire Strip Length: 10 mm, Wiring Format: 2 Conductor, 4 Connection Points, 1 Level, Spring Cage Terminal, NS 35/15, Insulation Material: Polyamide, Green/Yellow, -60 to 105 deg C, Flammability: V0, Height: 36.5 mm NS 35/7,5, 44 mm NS 35/15, 72 mm Width, 4.2 mm Depth

Key Specifications

SKU	PHO3031209
Brand	Phoenix Contact
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Corrosion-free terminal points Low contact resistance Green-yellow housing Tested for railway applications
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3031209
Colour	Green/Yellow
Conductor Size	0.08-1.5mm
Depth	4.2 mm
Flammability	V0
Insulation Material	Polyamide
Height	36.5 mm NS 35/75; 44 mm NS 35/15
Mounting Method	NS 35/15 - NS 35/75
Number of Conductors	2
Number of Connection Points	4
Number of Levels	1
Rated Surge Voltage	6 kV
Terminal Type	Spring Cage
Width	72 mm
Wire Strip Length	10 mm
Wiring Format	2 Conductor
