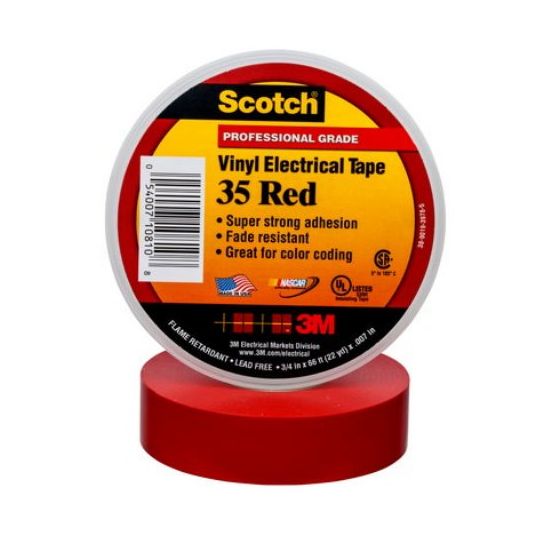

3M Electrical Insulation Tape L20MxW19mmx0.17mm PVC Red

Description

Insulation Tape, Premium Grade, 225% Elongation, 20 oz/in Steel Adhesion Strength, 3 kN/m Breaking Strength, 10^6 MOhm Insulation Resistance, Rubber Resin Adhesive Material, PVC Backing Material, Red, 0 to 105 deg C, 20 mtr Length, 19 mm Width, 0.17 mm Thickness, 1 Pack

Key Specifications

Barcode (EAN-13)	054007108108
SKU	REE3M35-RD
Brand	3M
Range Name	Scotch 35
Product Type	Insulation & Sealing Tape

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Outstanding electrical and mechanical properties make this tape excellent for use in phase identification, colour coding of motor leads and piping systems and for marking safety areas Excellent resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions offers superior durability for increased reliability Excellent stretch and elasticity provides best conformability and tight moisture seals so that any shape can be wrapped for years of protection from moisture Excellent adhesion ensures the tape sticks well to all cable jackets and conductors so that the likelihood of flagging is reduced Flame retardant, chemical resistant, UV resistant Insulated For phase identification and marking, harnessing, insulating splices up to 600 V 0 to 600 V voltage
Standard Pack Size	1
UNSPSC Class	31201500
UOM	RO
Vendor Product	3M35-RD
Adhesive Material	Rubber Resin
Adhesion Strength	20 oz/in Steel
Backing Material	PVC
Breaking Strength	3 kN/m
Colour	Red
Insulation Resistance	10^6 MOhm
Elongation	225%
Grade	Premium
Pack Size	1 Pack
Temperature	0 to 105 deg C
Width	19 mm
Thickness	0.17 mm
