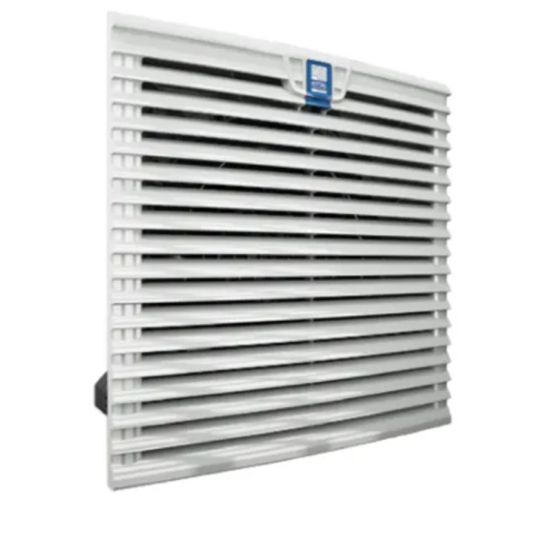

Rittal Filter Fan 550 m3/hr 230 Volt AC 50 Hz 323mm Height x 323mm Width x 118.5mm Depth Light Grey

$Rittal\Rittal_3243100.jpg$

Description

Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.

Key Specifications

Barcode (EAN-13)	4028177652101
SKU	RIA3243100
Brand	Rittal
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	3243100
Air Flow Cubic Meters per Hour	550 cu-m/h
Colour	Light Grey
Current	0.37/0.39 Amp
Cut-Out Size	292 mm Height x 292 mm Width
Frequency	50/60 Hz
Height	323 mm
IP Rating	IP54/55/56
Motor Type	AC
Min. Install Depth	118.5 mm
Mounting Method	Wall
Noise Level	59/61 dB
Phase	1 Phase
Temperature	-30 to 55 deg C
Voltage	230 Volt
Width	323 mm
