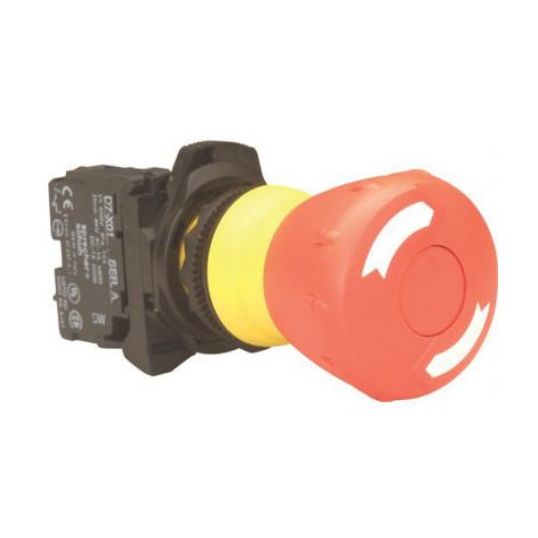

Sprecher+Schuh Emergency Stop Actuator Only 60mm Head Plastic Body Twist to Release Action 1 SMCB Red 22.5mm

$Sprecher\Sprecher_D7PMT64PX01S.jpg$

Description

Emergency Stop Actuator Only 60mm Head Plastic Body, Mushroom Head, 1SMCB, Mounting Hole Diameter: 22.5 mm, Operator Type: E-Stop, Tightening Torque: 1.7 N/m, Screw Terminal, IP65, IP66, IP69K, Panel Mount, Housing: Polycarbonate and PBT Blend, Bezel: Glass-Filled Nylon/PA6/PA66 (Polyamide 6), Silver Nickel (Ag/Ni), Red, -25 to 70 deg C, Twist to Release Action, 60 mm Diameter

Key Specifications

Barcode (EAN-13)	9321807233400
SKU	S&SD7P-MT64-PX01S
Brand	Sprecher+Schuh
Range Name	D7
Product Type	P/B Actuators Emergency Stop

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	D7PMT64PX01S
Colour	Red
IP Rating	IP65/66/69
Actuator Head	Mushroom
Contact Configuration	1 Normally Closed
Diameter	60 mm
Terminal Connection	Screw
Operator Type	E-Stop
Temperature	-25 to 70 deg C
Mounting Method	Panel
Contact Material	Silver Nickel (Ag/Ni)
Mounting Hole Diameter	22.5 mm
Operator Action	Twist to Release
Tightening Torque	1.7 Nm
