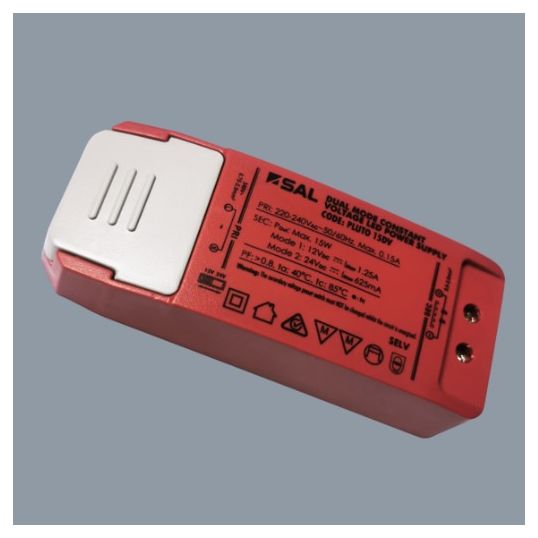

SAL LED Driver Constant Voltage 15W 240V IP20

chevron-left
loader
Loading...

Description

chevron-down
LED Driver Constant Voltage, 240 Volt AC Input Voltage, 12-24 Volt DC Output Voltage, 15 Watt, 50 Hz, Non-Dimmable, IP20, 0.8 Power Factor, 40 deg C, 99 mm Length, 39 mm Width, 23 mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
9328623119567
SKU
SALPLUTO15DV
Brand
SAL
Product Type
LED Drivers

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • SELV and EMC compliant
  • Safe no load operation, non-dimmable
  • Overload and short circuit protection
  • Hard wired termination design
  • Ideal for low wattage retrofit and maintenance lighting requirements
Standard Pack Size 1
UNSPSC Class 39101900
UOM EA
Vendor Product PLUTO 15DV
Dimmable Non-Dimmable
Frequency 50 Hz
Height 23 mm
Input Voltage 240 Volt AC
IP Rating IP20
Output Voltage 12-24 Volt DC
Power Factor 0.8
Temperature 40 deg C
Wattage 15 Watt
Width 39 mm
