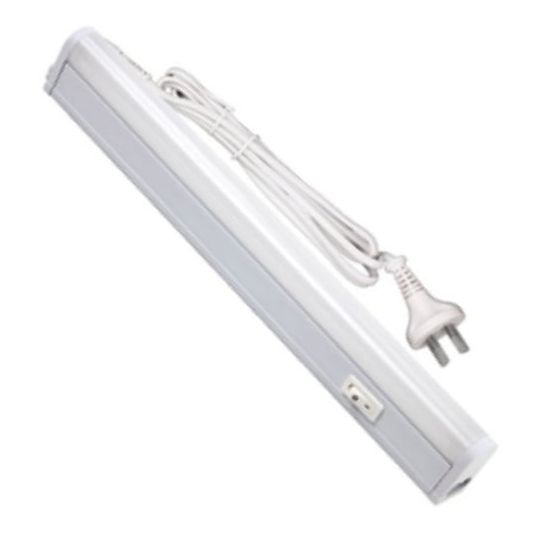

SAL LED Batten Linkable 9W 240V 750/800/750lm 3/4/5K White Opal Integral Driver

Description

LED Batten Linkable, LED, 9 Watt, 240 Volt AC Input Voltage, 50 Hz Input Frequency, Opal Diffuser, Integral Control Gear, 850/1050/900 lm, Warm White/Cool White/Daylight White, 3000/4000/5000K, 80 CRI, 66000 Calculated, Non-Dimmable, 105 deg Beam Angle, Ceiling Mounting, >0.5 Power Factor, IP20, 25 deg C, Polycarbonate, White, 540 mm Length, 23 mm Width, 36 mm Height, Tri-Colour

Key Specifications

Barcode (EAN-13)	9328623111936
SKU	SALSL9706/540TC
Brand	SAL
Product Type	Led Battens

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Selectable colour temperature- 3000K, 4000K, 5000K, beam distribution 105 deg, CRI >80 Polycarbonate body profile and opal diffuser Integral constant current non-dimmable driver Individual switch control, plug and play flex and plug included Maximum connections: 280TC 55, 540TC 25, 840TC 17, 1140TC 12, 1440TC 10 UNITS Accessories: SL9706/32CM LINK (L 320 mm) SL9706/76CM LINK (L 760 mm)
Standard Pack Size	1
UNSPSC Class	39111500
UOM	EA
Vendor Product	SL9706/540TC
Average Lamp Life	66000 Calculated
Beam Angle	105 deg
Colour	White
Colour Designation	Warm White/Cool White/Daylight White
Colour Temperature	3000/4000/5000K
Control Gear	Integral
Diffuser Type	Opal
CRI	80
Dimmable	Non-Dimmable
Height	36 mm
Input Frequency	50 Hz
Input Voltage	240 Volt AC
IP Rating	IP20
Light Source	LED
Lumens	850/1050/900 lm
Material	Polycarbonate
Mounting Method	Ceiling
Please Note	Tri-Colour
Power Factor	>0.5
Temperature	25 deg C
Wattage	9 Watt
Width	23 mm
