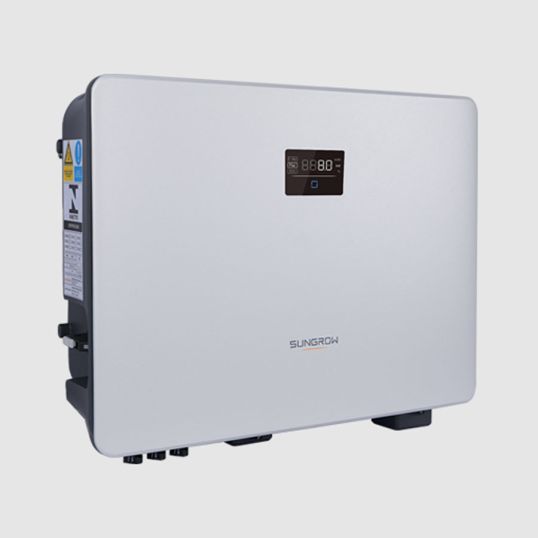

Sungrow 10kW Single Phase Triple-MPPT String Inverter

Name: Sungrow 10kW Single Phase Triple-MPPT String Inverter
SKU: SGWSG10RS-G3-ADA
Availability: InStock

$Sungrow\Sungrow_SG10RS-G3-ADA.JPG$

Description

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Compatible with high power PV modules and bifacial modules Lower startup and wider MPPT voltage range Built-in smart PID recovery function Integrated arc fault circuit interrupter Corrosion protection rating at C5 One-click access to iSolarCloud monitoring platform
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SG10RS-G3-ADA
AC Nominal Voltage	220 / 230 / 240 Volt
AC Operating Voltage	154-276 Volt
AC Max. Apparent Power	9.9 kVA
AC Operating Frequency	50/60 Hz
AC Output Current	36.4 Amp
AC Output Power	10 kW
Communication Port	Ethernet / WLAN / RS485 / DI
Connection Type	DC: MC4 / AC: Plug and Play
DC Max. Input Current	48 Amp
Cooling Method	Natural
DC Input Power	15 kWp
DC Input Voltage	40-600 Volt
DC MPPT Voltage Range	40-560 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	50 Volt
DC Switch	Yes
Depth	170 mm
Display Type	LED Digital Display and Indicator
Efficiency	97.80%
Height	340 mm
European Weighted Efficiency	97.40%
IP Rating	IP65
Mounting Method	Wall Mounting Bracket
Max. Operating Altitude	4000 mtr
Phase	1 Phase
Operating Temperature	-25 to 60 deg C
Number of MPPTs	3
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity	0-100% No Condensation
Total Harmonic Distortion	<3%
Width	490 mm
Topology	Transformerless
