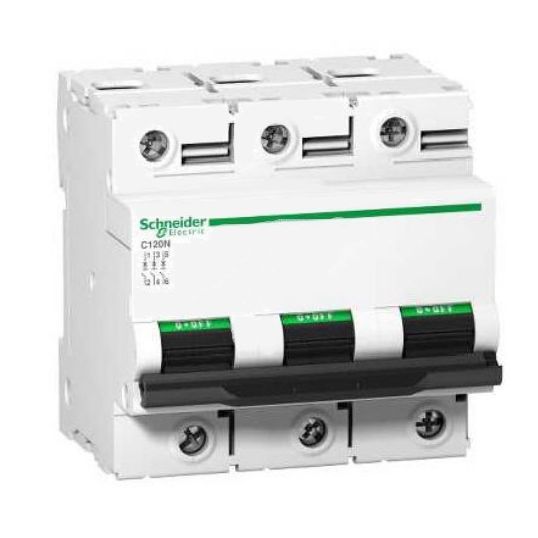

Schneider Miniature Circuit Breaker C Curve 80Amp 10 kA 3Pole 4.5Module 81mm DIN Rail/Clip-On Mount

Description

Miniature Circuit Breaker C Curve, 380-415-220-240-440-230-400 Volt AC/<= 375 Volt DC, 80 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 4.5 Module 81 mm, 3 Pole, Toggle Actuator, 3.5 Nm Tightening Torque, 20000 Cycles Electrical Life, IP20, DIN Rail/Clip-On Mounting, White, 25 to 70 deg C, 81 mm Height, 81 mm Width, 73 mm Depth

Key Specifications

Barcode (EAN-13)	3606480379390
SKU	SHNA9N18365
Brand	Schneider
Range Name	Acti 9 iC120N
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Circuit protection against short circuit currents Circuit protection against overload currents Fault tripping and indication by adding auxiliaries
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9N18365
Actuator Type	Toggle
Colour	White
Current	80 Amp
Depth	73 mm
Electrical Life	20000 Cycles
Frequency	50/60 Hz
Height	81 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Modules	4.5 Module 81 mm
Mounting Method	DIN Rail/Clip-On
Number Of Poles	3 Pole
Temperature	25 to 70 deg C
Tightening Torque	3.5 Nm
Voltage	380-415-220-240-440-230-400 Volt AC/<= 375 Volt DC
Width	81 mm
