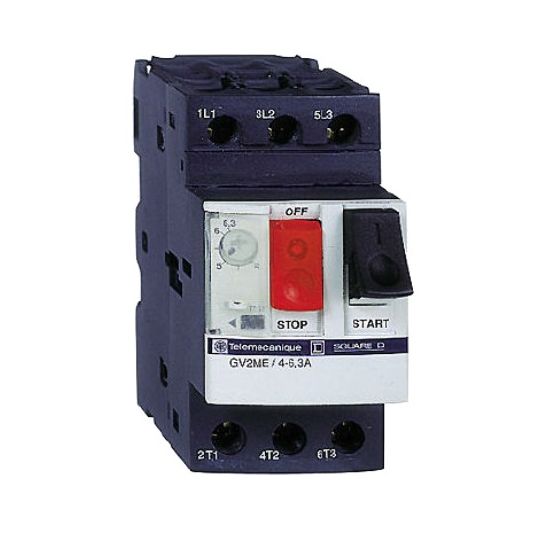

Schneider Circuit Breaker Motor Rated 3Pole 4A 1.1kW 690VAC DIN Rail Clipped Mount

Description

Miniature Circuit Breaker Motor Rated, 690 Volt AC, 4 Amp, 50/60 Hz, 100 kA Interrupt Capacity, 51 Magnetic Rating, 1.1 kW Load Rating, 3 Poles, Push-Button Operator, Screw Clamp Terminal, 100000 Cycles, IP20 Conforming to IEC 60529, 35mm Symmetrical DIN Rail Clipped,-20 to 60 deg C, 89mm Height x 45mm Width x 78.5mm Depth

Key Specifications

Barcode (EAN-13)	3389110343090
SKU	TEEGV2ME08
Brand	Schneider
Range Name	GV2ME
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	GV2ME08
Current	4 Amp
Height	89mm
Frequency	50/60 Hz
Depth	78.5mm
Interrupt Capacity	100 kA
Load Rating	1.1 kW
IP Rating	IP20
Magnetic Rating	51
Mounting Method	DIN Rail
Operating Cycles	100000 Cycles
Number Of Poles	3 Pole
Operator Type	Operators
Terminal Type	Screw Clamp
Voltage	690 Volt
Temperature	-20 to 60 deg C
Width	45mm
