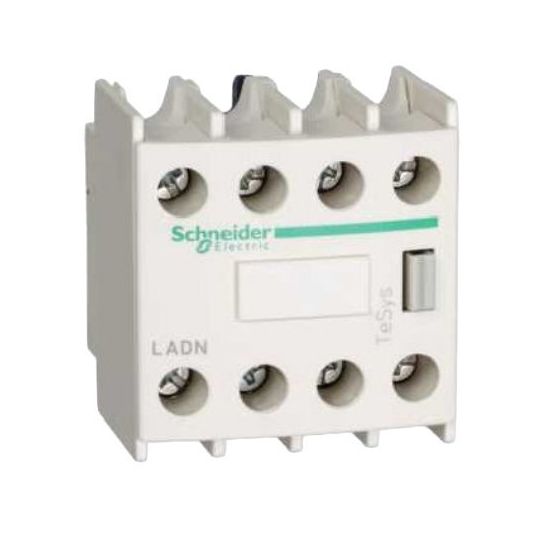

Schneider Auxiliary Contact Block Front Mount 690V 2NO-2NC IP20 Screw Clamp

Description

Auxiliary Contact Block Front Mount, 690 Volt AC Operational Voltage, 17 Volt Switching Voltage, 5 mA Switching Current, 2 Normally Opened/2 Normally Closed Configuration, Front Mounting, Screw/Clamp Terminal, For Use With TeSys D CAD TeSys D LC1D TeSys F LC1F TeSys F CR1F Contactors, IP20, -5 to 60 deg C, 48 mm Height, 44 mm Width, 42 mm Depth

Key Specifications

Barcode (EAN-13)	3389110384031
SKU	TEELAD-N22
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactor Auxiliaries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For use in normal operating environments
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LADN22
Contact Configuration	2 Normally Opened/2 Normally Closed
Depth	42 mm
For Use With	TeSys D CAD TeSys D LC1D TeSys F LC1F TeSys F CR1F Contactors
Height	48 mm
Mounting Method	Front
IP Rating	IP20
Operational Voltage	690 Volt AC
Switching Current	5 mA
Switching Voltage	17 Volt
Temperature	-5 to 60 deg C
Width	44 mm
Terminal Connection	Screw/Clamp
