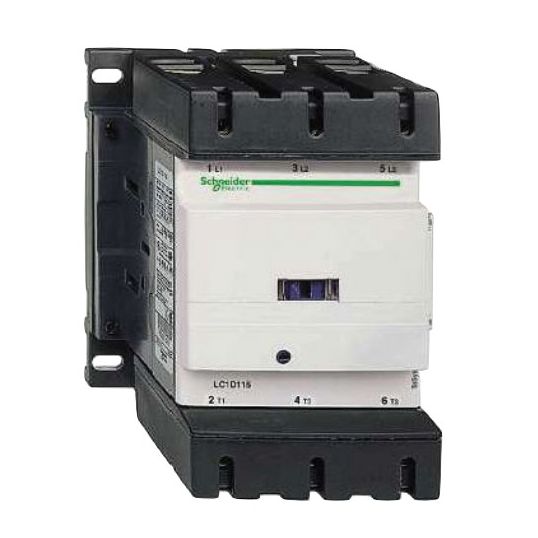

Schneider Contactor General Purpose DC Operated 3 Pole 65kW 115A AC3 200A AC1 220VDC 1NO-1NC Aux DIN Rail/Plate Mount

Description

Contactor General Purpose DC Operated, 220 Volt DC, AC3 Rating (kW): 65, AC3 Rating (Amps): 115 at 440 Volt AC, AC1 Rating (Amps): 200 at 440 Volt AC, 1000 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 40-75 ms Opening, Lug Ring, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 158 mm Height, 120 mm Width, 136 mm Depth

Key Specifications

Barcode (EAN-13)	3389110381139
SKU	TEELC1-D1156MD
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D1156MD
AC1 Rating (Amps)	200 Amp AC1
AC3 Rating (Amps)	115 Amp AC3
AC3 Rating (kW)	65 kW
Contact Voltage	1000 Volt AC/300 Volt DC
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Depth	136 mm
Height	158 mm
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	220 Volt DC
Operating Time	20-35 ms Closing/40-75 ms Opening
Temperature	-40 to 60 deg C
Terminal Connection	Lug Ring
Width	120 mm
