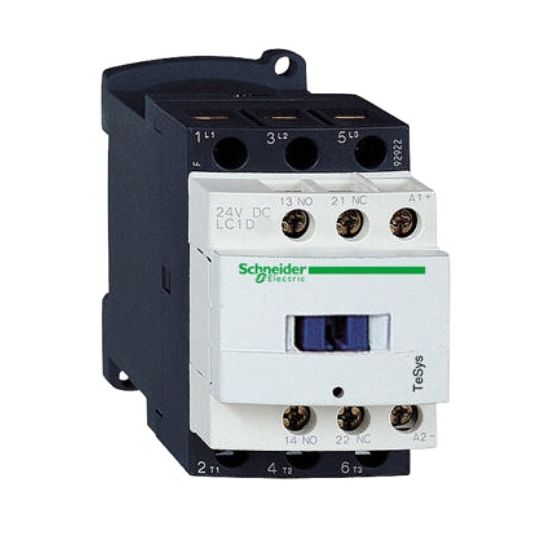

Schneider Contactor General Purpose AC Operated 3 Pole 15kW 32A AC3 50A AC1 48V 1NO-1NC Auxilary DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 48 Volt AC, AC3 Rating (kW): 15, AC3 Rating (Amps): 32 at 440 Volt AC, AC1 Rating (Amps): 50 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 12-22 ms Closing, 4-19 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 85 mm Height, 45 mm Width, 92 mm Depth

Key Specifications

Barcode (EAN-13)	3389110350166
SKU	TEELC1-D32E7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D32E7
AC1 Rating (Amps)	50 Amp AC1
AC3 Rating (Amps)	32 Amp AC3
AC3 Rating (kW)	18.5 kW
Contact Voltage	690 Volt AC/300 Volt DC
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Depth	92 mm
Height	85 mm
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	48 Volt AC
Operating Time	12-22 ms Closing/4-19 ms Opening
Temperature	-40 to 60 deg C
Terminal Connection	Screw Clamp
Width	45 mm
