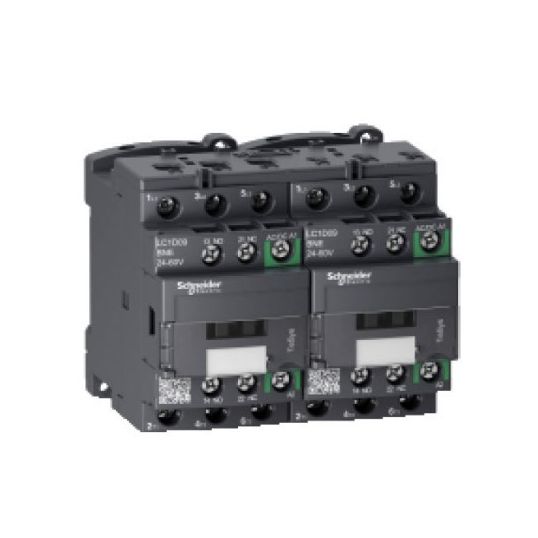

Schneider Contactor Reversing 3 Pole 4kW 9A 25A 24-60VAC/DC 1NO-1NC Auxiliary DIN Rail/Plate Mount

Description

Contactor Reversing, 24-60 Volt AC/DC, 1NO/1NC Auxiliaries, AC3 Rating (kW): 4, AC3 Rating (Amps): 9, AC1 Rating (Amps): 25, 3 Pole, 1/3 Phase, Operating Time: 45-55 ms Closing/20-90 ms Opening, Screw Clamp Terminal, IP20, DIN Rail/Plate Mount, Grey (SE GREY 6)/Green, -40 to 60 deg C, 60 to 70 deg C with Derating, 77 mm Height, 90 mm Width, 86 mm Depth

Key Specifications

Barcode (EAN-13)	3606480987847
SKU	TEELC2D09BNE
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Motor control, resistive load application
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC2D09BNE
AC1 Rating (Amps)	25 Amp AC1
AC3 Rating (Amps)	9 Amp AC3
AC3 Rating (kW)	4 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Depth	86 mm
Height	77 mm
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	24-60 Volt AC/DC
Operating Time	45-55 ms Closing/20-90 ms Opening
Temperature	-40 to 60 deg C/60 to 70 deg C with Derating
Terminal Connection	Screw Clamp
Width	90 mm
