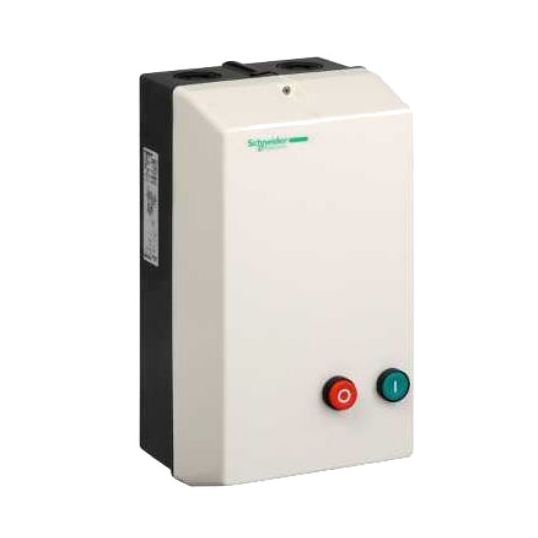

Schneider Motor Starter Star Delta 22kW 415V Polycarbonate Enclosure IP65

Description

Motor Starter Star Delta, 18 Amp, 50/60 Hz, 22 kW, 11 kW @ 220/230 Volt AC 50/60 Hz, 22 kW @ 415/440 Volt AC 50/60 Hz, 415 Volt AC, Screw, Push-Button Start, Push-Button Stop/Reset, IP65, Polycarbonate Enclosure, -5 to 40 deg C, 348 mm Height x 186 mm Width x 175.5 mm Depth, Overload Purchased Separately

Key Specifications

Barcode (EAN-13)	3389110628258
SKU	TEELE3-D18N7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Motor Starters Star Delta

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LE3D18N7
Coil Voltage	415 Volt AC
Connection Type	Screw
Control Type	Pushbutton Start/Pushbutton Stop/Reset
Current	18 Amp
Depth	175.5 mm
Frequency	50/60 Hz
Height	348 mm
IP Rating	IP65
Motor Power	11 kW @ 220-230 Volt AC/22 kW @ 415-440 Volt AC
Operating Temperature	-5 to 40 deg C
Please Note	Overload Purchased Separately
Wattage	22 kW
Width	186 mm
