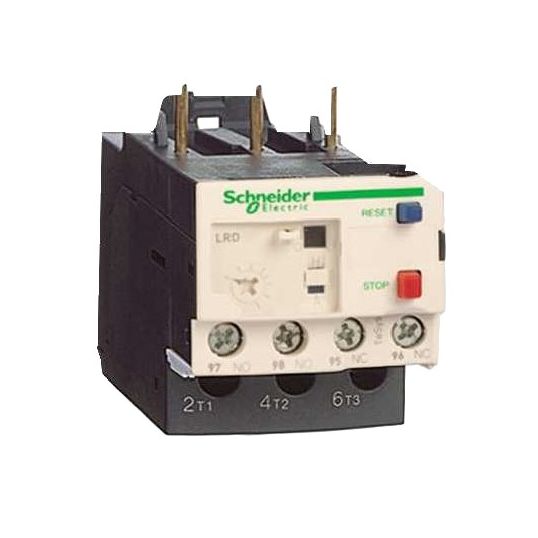

Schneider Thermal Overload Relay DIN Rail/Plate Mount 3 Pole 0.1-0.16A 690V 1NO-1NC Class 10A Blue Pushbutton IP20

Description

Thermal Overload Relay, Setting Range From (Amp): 0.1, Setting Range To (Amp): 0.16, 690 Volt, 1NO-1NC, 0-400 Hz, 3 Pole, Class 10A, Blue Push-Button, Tightening Torque: 1.7 N/m, DIN Rail/Plate Mount, Screw Clamp Terminal, IP20, -20 to 60 deg C, 66 mm Height, 45 mm Width, 70 mm Depth, For Use With: LC1D09 to LC1D38 Contactors, Please Note: 2 Phase

Key Specifications

Barcode (EAN-13)	3389110346718
SKU	TEELRD-01
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	LRD01
Contact Configuration	1 Normally Opened & 1 Normally Closed
Control Type	Blue Push-Button
Depth	70 mm
Operational Voltage	690 Volt
Frequency	0-400 Hz
For Use With	LC1D09 to LC1D38 Contactors
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Height	66 mm
Number Of Poles	3 Pole
Please Note	2 Phase
Setting Range From (Amp)	0.1
Setting Range To (Amp)	0.16
Temperature	-20 to 60 deg C
Terminal Connection	Screw Clamp
Trip Characteristic	Class 10A
Tightening Torque	1.7 N/m
Width	45 mm
