Schneider Thermal Overload Relay DIN Rail/Plate Mount 3 Pole 30-40A 1000V 1NO-1NC Class 10A Blue Pushbutton IP20

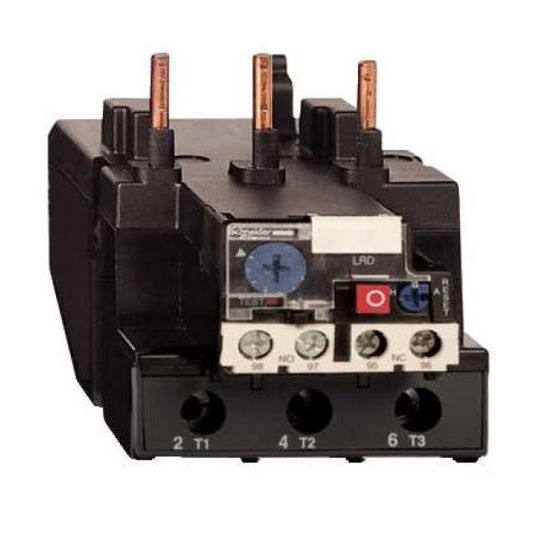

$Schneider\Schneider_LRD335.jpg$

Description

Thermal Overload Relay, Setting Range From (Amp): 30, Setting Range To (Amp): 40, 1000 Volt AC, 1NO-1NC, 0-400 Hz, 3 Pole, Class 10A, Blue Push-Button, Tightening Torque: 1.7 N/m, DIN Rail/Plate Mount, Screw Clamp Terminal, IP20, -20 to 60 deg C, 81 mm Height, 70 mm Width, 115 mm Depth, For Use With: LC1D40 and LC1D95 Contactors, Please Note: 2 Phase

Key Specifications

Barcode (EAN-13)	3389110519938
SKU	TEELRD-3355
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	LRD3355
Contact Configuration	1 Normally Opened & 1 Normally Closed
Control Type	Blue Push-Button
Depth	115 mm
For Use With	LC1D40 and LC1D95 Contactors
Height	81 mm
IP Rating	IP20
Frequency	0-400 Hz
Number Of Poles	3 Pole
Mounting Method	DIN Rail/Plate
Operational Voltage	1000 Volt AC
Please Note	2 Phase
Setting Range To (Amp)	40.0
Temperature	-20 to 60 deg C
Setting Range From (Amp)	30.0
Terminal Connection	Screw Clamp
Trip Characteristic	Class 10A
Tightening Torque	1.7 N/m
Width	70 mm
