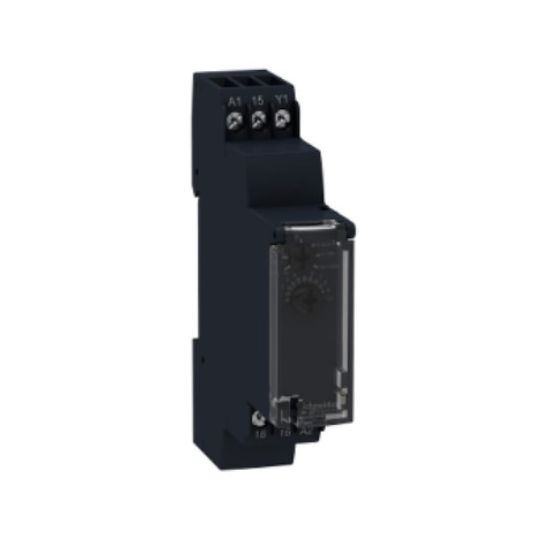

Clipsal Time Delay Relay Analogue DIN Rail Mount 1CO Function A On Delay 0.1s-100Hr 24VDC/24-240V

Description

Time Delay Relay Analogue, 24-240 Volt AC/24 Volt DC, 8 Amp, 0-32 VA at 240 Volt AC/0.6 Watt at 24 Volt DC, 1 Changeover Configuration, Function A On Delay, 0.1 Seconds-100 Hours, Selector Switch Front Panel Control, 100000 Cycles Electrical/10000000 Cycles Mechanical, 24-14 AWG Flexible/20-12 AWG Solid, Screw Terminal, 0.6-1 Nm Tightening Torque, Vertical/DIN Rail Mounting, IP20/40/50, -20 to 60 deg C, 90 mm Height, 17.5 mm Width, 72 mm Depth

Key Specifications

Barcode (EAN-13)	3606480552670
SKU	TEERE17RAMU
Brand	Clipsal
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RE17RAMU
Conductor Size	24-14 AWG Flexible/20-12 AWG Solid
Contact Configuration	1 Changeover
Control Type	Selector Switch Front Panel
Current	8 Amp
Depth	72 mm
Operating Cycles	100000 Cycles Electrical/10000000 Cycles Mechanical
Height	90 mm
IP Rating	IP20/40/50
Mounting Method	Vertical/DIN Rail
Power Rating	0-32 VA at 240 Volt AC/0.6 Watt at 24 Volt DC
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Voltage	24-240 Volt AC/24 Volt DC
Timing Function	Function A On Delay
Tightening Torque	0.6-1 Nm
Timing Range	0.1 Seconds-100 Hours
Width	17.5 mm
