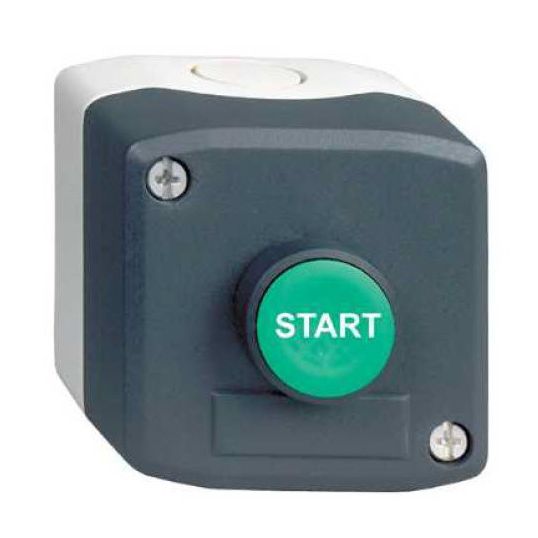

Schneider Pushbutton Control Station 1G 1NO Polycarbonate Light Grey/Grey Cover/Green Operator Spring Return

Description

Pushbutton Control Station Complete, 10 Amp, 1 Operator, 1NO, Slow Break, Spring Return, Legend: START, White, Non Illuminated Pushbutton, Screw Clamp Terminal, Hub Size: 22 mm Diameter, IP66, IP67, IP69, IP69K, Polycarbonate, Light Grey, Dark Grey Cover, Green Operator, -25 to 70 deg C, 68 mm Height, 68 mm Width, 62 mm Depth

Key Specifications

Barcode (EAN-13)	3389110113334
SKU	TEEXAL-D103
Brand	Schneider
Product Type	Control Stations

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XALD103
Colour	Light Grey/Dark Grey Cover/Green Operator
Connection Type	Screw Clamp
Actuator	Non Illuminated Pushbutton
Contact Mode	Slow Break
Contact Configuration	1 Normally Opened
Enclosure Material	Polycarbonate
Depth	62 mm
Height	68 mm
Interrupt Rating	10 Amp
Hub Size	22 mm Diameter
IP Rating	IP66/67/69/69K
Legend Colour	White
Legend	START
Number of Operators	1 Module
Operator Type	Spring Return
Temperature	-25 to 70 deg C
Width	68 mm
