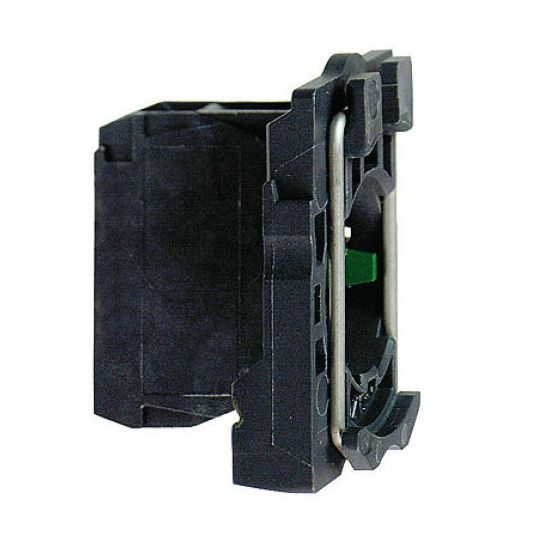

Schneider Harmony XB5 Single Contact Block With Body/Fixing Collar 1NO Screw Clamp Terminal
Loading...
Description
Contact Block Single, 600 Volt, 10 Amp, 1 Normally Opened Configuration, Slow Break Contact Operation, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, Panel Mounting, For Use With Fixing Collar, IP20, -40 to 70 deg C, 22.5 mm, 42 mm Height, 30 mm Width, 32 mm Depth
Key Specifications
| Barcode (EAN-13) |
3389110924398
|
|---|---|
| SKU |
TEEZB5-AZ101
|
| Brand |
Schneider
|
| Range Name |
Harmony Style 5
|
| Product Type |
Operator Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | ZB5AZ101 |
| Contact Configuration | 1 Normally Opened |
| Contact Operation | Slow Break |
| Depth | 32 mm |
| For Use With | Fixing Collar |
| Current | 10 Amp |
| Height | 42 mm |
| IP Rating | IP20 |
| Mounting Method | Panel |
| Temperature | -40 to 70 deg C |
| Terminal Connection | Screw Clamp/Plug-in/Printed Circuit Board/Faston |
| Size | 22.5 mm |
| Width | 30 mm |
| Voltage | 600 Volt |
