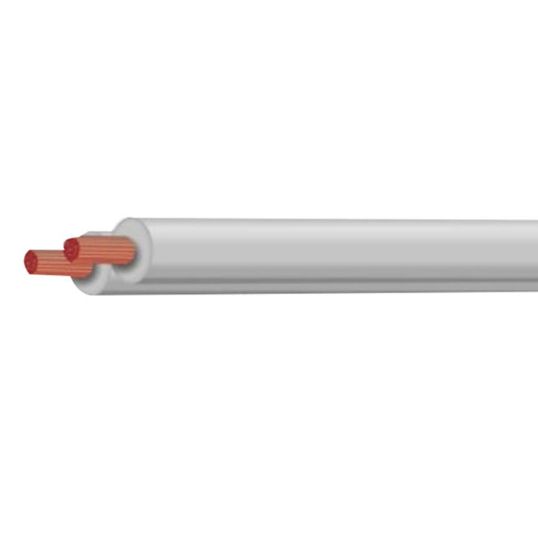

Tycab 0.75mm 2 Core Figure 8 Speaker Cable RoHS Compliant PVC

$Tycab\Tycab_FFR22402-WH.jpg$

Description

Speaker Cable, Figure 8, 0.75 mm, Oxygen Free Copper, 250 Volt, 7.5 Amp, 2 Core, 24/0.2 mm Strands, 2.8 mm x 6 mm Overall Diameter, 0.8 mm Insulation Thickness, 26 Ohm/km Conductor Resistance, RoHS Compliant V-90 PVC Parallel Webbed Insulation, White Insulation, Unsheathed, 60 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9320943155010
SKU	TYCFFR22402-WH-100
Brand	Tycab
Product Type	Speaker Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FFR22402-WH-100
Conductor Resistance	26 Ohm/km
Conductor Type	Oxygen Free Copper
Conductor Size	0.75 mm
Current	7.5 Amp
Insulation Colour	White
Insulation Material	RoHS Compliant V-90 PVC Parallel Webbed
Insulation Thickness	0.8 mm
Number of Cores	2 Core
Overall Diameter	2.8 mm x 6 mm
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	24/0.2 mm
Voltage	250 Volt
Temperature	60 deg C
