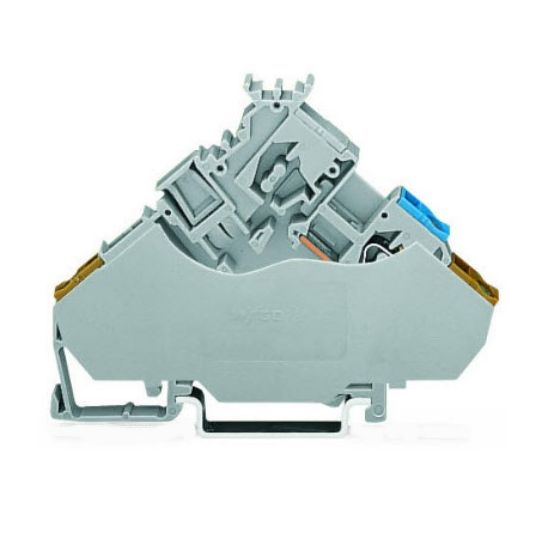

Wago Actuator Terminal Block Cage Clamp 125V 6.3A 2 Wire 3 Level 2.5mm Grey Polyamide 66

$Wago\Wago_280-565.jpg$

Description

Actuator Terminal Block, Angled, 125 Volt Nominal, 250 Volt Rated, 5 Amp Current, 6.3 Amp Current 2, 2.5mm Conductor, 2 Conductors, Wire Strip Length: 8 to 9 mm, Wiring Format: 2 Conductor, Front Wire Entry, 3 Connection Points, 3 Potentials, 3 Levels, Marking Position: Centre, Marking: (III / 3) ? Overvoltage category III / Pollution degree 3, Fire load: 0.189 MJ, Actuation Type: Operating Tool, Cage Clamp Terminal, DIN-35 Rail Mount, Conductor Material: Copper, Aluminium, Insulation Material: Polyamide 66, Grey, Height: 80 mm, 55.5 mm Width, 5 mm Depth

Key Specifications

Barcode (EAN-13)	4017332133340
SKU	WAG280-565
Brand	Wago
Product Type	Actuator Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	280-565
Colour	Grey
Conductor Size	2.5mm
Current Rating	5 Amp
Wiring Format	2 Conductor
Height	80 mm
Width	55.5 mm
Depth	5 mm
Terminal Type	Cage Clamp
Actuation Type	Operating Tool
Fire Load	0.189 MJ
Marking	(III / 3) Overvoltage category III / Pollution degree 3
Number of Connection Points	3
Number of Levels	3
Marking Position	Centre
Wire Entry Orientation	Front
Number of Potentials	3
Mounting Method	DIN Rail
Wire Strip Length	8-9 mm
Insulation Material	Polyamide 66
Conductor Material	Copper/Aluminium
Number of Conductors	2
Voltage Rating	125 Volt Nominal/250 Volt Rated
