Winaico Solar Panel 485W Monocrystalline 108 Cells 33.94V 14.3A Black Anodised Aluminum Residential 40.89V 15.03A 30A

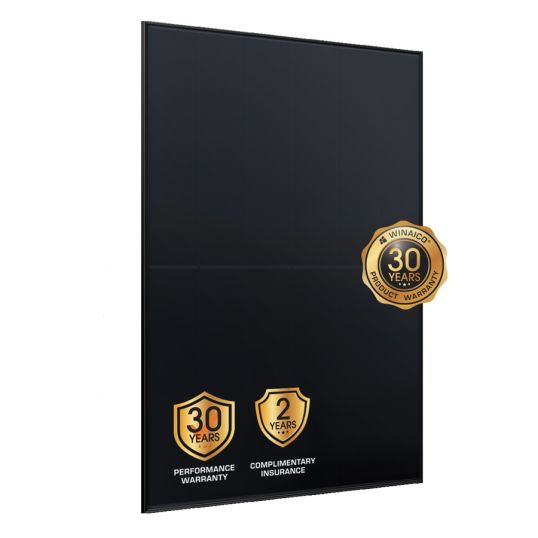

$Winaico\Winaico_WST-485BDX54-B2.JPG$

Description

Solar Panel, Residential Model, Monocrystalline Cell, 108, 485 Watt, 33.94 Volt Maximum, 14.3 Amp Maximum, 40.89 Volt Open Circuit, 15.03 Amp Short Circuit, 30 Amp Max. Fuse, 1500 Volt Max. System, 17.88% Efficiency, 0-5 Watt Power Tolerance, MC4-EVO2A Connector, 2 1200 mm, 4 sq-mm Output Cables

Key Specifications

SKU	WINWST-485BDX54-B2
Brand	Winaico
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	More power. Minimal power loss at rising temperatures. Highest area output of 238 watt / sq-mtr.At least 88,85 % residual power after 30 years. More safety.Reduced risk of microcracks.Protection against glass breakage thanks to 35 mm frame thickness. More protection.Insurance cover for the entire solar system included for the first year. More warranty.30 years product warranty.30 years performance warranty.German guarantor.
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	WST-485BDX54-B2
Cell Type	Monocrystalline
Certifications	CE / TUV
Connector Type	MC4-EVO2A
Efficiency	17.88%
Height	35 mm
Front Glass	2 mm, Highly Transparent Solar Glass with Anti-Reflective Coating
Frame Construction	Black Anodized Aluminium
Junction Box	IP68 / 3 Bypass Diodes
Item Weight	25 kg
Max. Fuse Current	30 Amp
Max. Current	14.3 Amp
Max. System Voltage	1500 Volt
Model	Residential
Number Of Cells	108
Operating Temperature	45 +/-2 deg C
Output Cables	2 1200 mm / 4 sq-mm
Power Tolerance	0-5 Watt
Temperature Coefficient	-0.26%/ deg C
Wattage	485 Watt
Warranty	30 Years Product / 30 Years Performance
Width	1134 mm
